Features#

LSP enhances existing concepts from Sublime Text and introduces new concepts not native to Sublime Text. This page provides an overview about the most important capabilities. The capabilities/concepts are accessible in different ways. Some are accessible as a command from the command palette, via the right-click context menu, or from the main menu of the window. Others are part of an existing workflow. Almost all capabilities can also be bound to a key with a key binding.

Auto Complete#

The LSP package enhances the auto-complete functionality of Sublime Text with results provided by the language server. If available, you can click the More link or use the default key binding F12 to show an additional documentation popup with detailed information about the highlighted item.

Some language servers provide two different modes for inserting a completion item when the caret is in the middle of a word, in which case Replace or Insert is shown at the bottom of the auto-completion popup. The default insertion mode can be configured with the "completion_insert_mode" setting, and the opposite mode can be used by confirming a completion item with the key binding AltEnter.

Example GIF for "Replace" mode

Signature Help#

The signature help popup appears when typing the arguments of a function call. It highlights the name of the current parameter and often presents additional type information and documentation of the function and parameters. If multiple overloads of the function exist, you can switch between them using the up and down arrow keys.

The styles in the signature help popup can be adjusted by defining color scheme rules for the following scopes:

Hover#

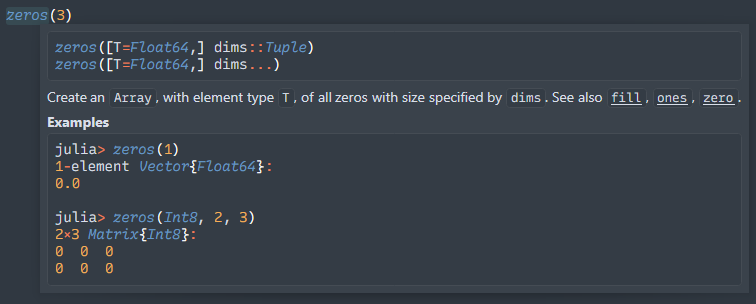

Sublime Text shows a built-in popup with the definitions and references when you hover with the mouse over an identifier name in the file. LSP replaces this popup with information from the language server, often displaying type information, documentation, and example usage.

LSP internally uses the mdpopups library to render the popups. You can override its style by creating a Packages/User/mdpopups.css file. For example, to get the same font in the popup as in the editor, use

html {
    --mdpopups-font-mono: "your desired font face";
}

See the mdpopups documentation for more details.

LSP can also highlight the word or range for which a hover popup is shown, if the "hover_highlight_style" setting is enabled. In that case you can use the scope markup.highlight.hover in a color scheme rule to control the highlighting color. If the setting is set to "background", the highlighting color can be controlled using the "background" property in the color scheme rule.

Highlights#

When you select a word, Sublime Text highlights other occurrences of that word in the file (controlled by the "match_selection" setting). LSP has a similar capability to highlight the identifier name that is currently under the caret. It is enhanced in the sense that the highlighted locations are restricted to only the relevant part of the file, according to the scoping rules of the language. Furthermore it can distinguish between read and write access of a variable and may highlight them with different colors.

The highlighting color can be adjusted with color scheme rules for the following scopes:

If "document_highlight_style" is set to "background" in the LSP settings, the highlighting color can be controlled using the "background" property in the color scheme rule.

Semantic Highlighting#

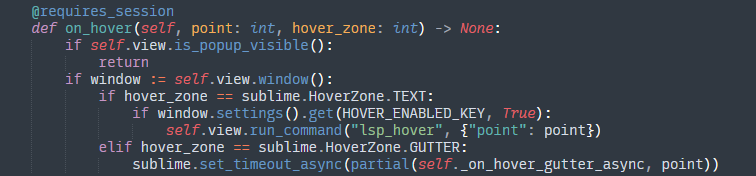

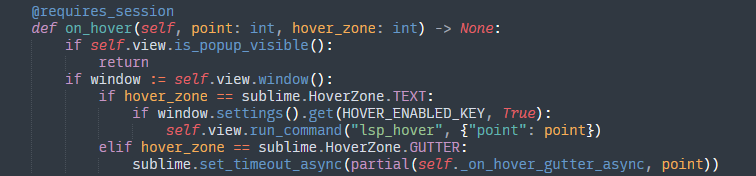

Semantic highlighting enhances regular syntax highlighting by using additional information about the source code that are not accessible for the RegEx-based syntax definitions. For example, it can highlight argument names in the function body with the same color used in the function signature, or assign different colors to references of regular variables and of variables that were declared as constant.

In order to support semantic highlighting, the color scheme requires a special rule with a background color set for semantic tokens, which is (marginally) different from the original background. LSP automatically adds such a rule to the built-in color schemes from Sublime Text. If you use a custom color scheme, select UI: Customize Color Scheme from the Command Palette and add the following rule:

{
    "rules": [
        {
            "scope": "meta.semantic-token",
            "background": "#00000101" // must be (marginally) different from the original color scheme background
        },
    ]
}

It is possible to adjust the colors for semantic tokens by applying a foreground color to the individual token types:

If you define color scheme rules for the meta.semantic-token.* scopes listed above, they take precedence over the fallback scopes used by LSP to determine the default semantic highlighting colors. The fallback scopes can depend on additional token modifiers.

Language servers can also add their custom token types and modifiers, which are not defined in the protocol. The default scopes for such custom tokens are defined in a "semantic_tokens" mapping in the server configuration, for example in the settings file of an LSP-* helper package. The keys of this mapping should be the token types and the values are the corresponding scopes. Semantic tokens with exactly one token modifier can be targeted by appending the modifier after a dot.

{
    "semantic_tokens": {
        "magicFunction": "support.function.builtin",
        "selfParameter": "variable.language",
        "type.defaultLibrary": "storage.type.builtin",
    }
}

The color for custom token types can also be controlled from a color scheme rule for the scope meta.semantic-token.<token-type>, where <token-type> is the name of the custom token type, but with all letters lowercased, similar to the scopes that are listed in the table above. To target tokens with one modifier, use the scope meta.semantic-token.<token-type>.<token-modifier> (all lowercase). It is currently not possible to target semantic tokens with more than one modifier.

If neither a scope for a custom token type is defined, nor a color scheme rule for this token type exists, then it is only highlighted via regular syntax highlighting.

Goto Definition#

LSP provides a "Goto Definition" command, which can be more accurate than the syntax-based "Goto Definition" functionality from Sublime Text, due to the language server's additional knowledge about the project structure and type information. It is accessible from the right-click context menu, under Goto from the main menu, or can be bound to a user-defined key binding.

The command from LSP can also fall back to Sublime's built-in "Goto Definition" if the "fallback" argument is set to true. This way, the built-in "Goto Definition" command will be triggered when there are no results found.

If applicable to the language and supported by the server, further refinements may be available in addition to the basic "Goto Definition" functionality:

• Goto Type Definition
• Goto Declaration
• Goto Implementation

Find References#

LSP has a "Find References" command that is similar to the built-in "Goto Reference…", but can provide more accurate results. The command from LSP replaces the default key binding ShiftF12, and it can also be accessed from the right-click context menu, from the main menu, and from the command palette. If the fallback command argument is set to true in a user-defined key binding or command palette entry, LSP's "Find References" can fall back to the built-in "Goto Reference…" when there are no results found by the language server.

Diagnostics#

LSP highlights syntax and type errors, linter warnings and other information like hints about unused variables in the source code. Additionally, an icon is shown in the gutter for lines that contain diagnostics with severity information or higher.

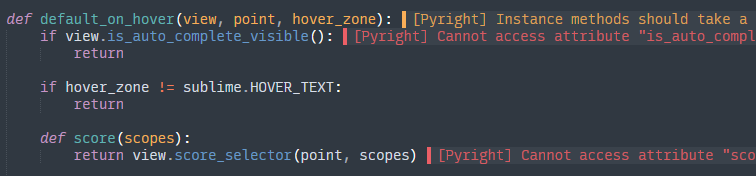

Diagnostics can also be presented as annotations positioned to the right of the viewport, if the "show_diagnostics_annotations_severity_level" setting is enabled:

The colors for diagnostics can be adjusted with color scheme rules for the following scopes:

Diagnostics also optionally include the following scopes:

Those scopes can be used to, for example, gray out the text color of unused code, if the server supports that.

For example, to add a custom rule for the Mariana color scheme, select UI: Customize Color Scheme from the Command Palette and add the following rule:

{
    "rules": [
        {
            "scope": "markup.unnecessary",
            "foreground": "rgba(255, 255, 255, 0.4)",
            "background": "#00000101" // must be (marginally) different from the original color scheme background
        },
    ]
}

Code Actions#

Code actions is an umbrella term for "Quick Fixes" and "Refactorings". These are actions that can resolve a diagnostic, or to apply a standard refactoring technique, like extracting a block of code into a separate method. LSP presents "Quick Fix" code actions as a clickable annotation positioned to the right of the viewport. Alternatively they can be shown as a lightbulb icon in the gutter. "Refactor" code actions are accessible from the right-click context menu and under Edit from the main menu.

The accent color for code action annotations can be controlled with a color scheme rule for the markup.accent.codeaction scope (blue by default).

Certain code actions can also be run automatically on file save ("lsp_code_actions_on_save" setting) or when file formatting is triggered ("lsp_code_actions_on_format" setting). This includes actions which sort the import lines in the file, or to automatically apply all available fixes for diagnostics.

Code Lenses#

Code Lenses are actionable contextual information that are interspersed in the source code. Typical examples are the reference counts to functions and type definitions, or testrunner integrations for unit tests.

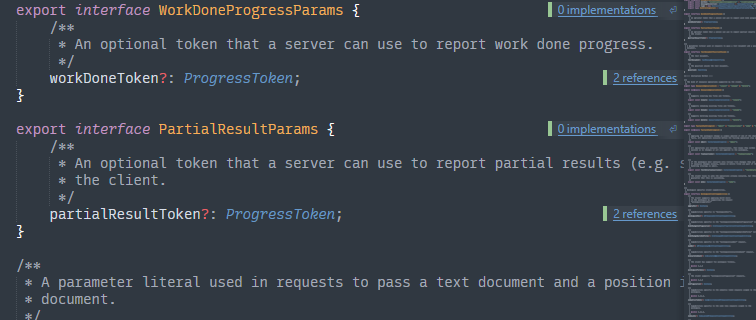

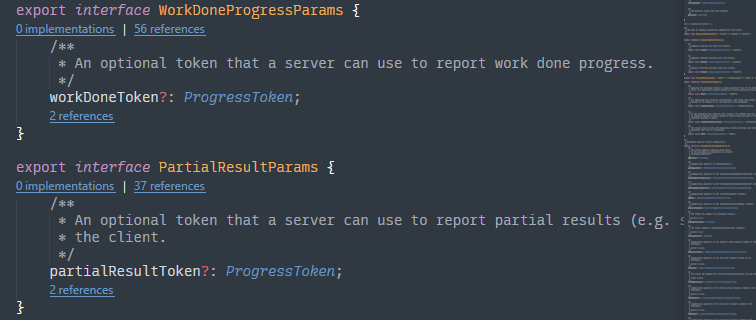

LSP presents code lenses as a clickable annotation positioned to the right of the viewport. Alternatively they can be presented as phantoms beneath the lines.

The accent color for code lens annotations can be controlled with a color scheme rule for the markup.accent.codelens scope (green by default).

Inlay Hints#

Inlay hints are short textual annotations that show parameter names and type hints.

The styles for inlay hints are defined in the inlay_hints.css file in the root directory of the LSP package. To adjust the style, you can create an override for this file (a restart of Sublime Text is required to apply the changes).

Goto Symbol#

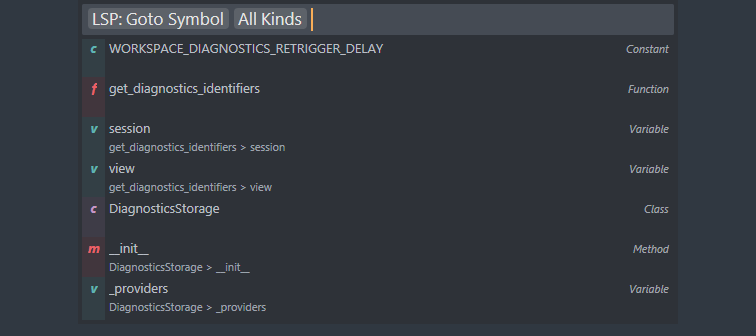

LSP provides a replacement for the built-in "Goto Symbol" command, which displays all symbols from the active file in the command palette and allows to quickly jump to their locations. The command from LSP can provide more detailed descriptions and also allows to filter symbols according to their kind by pressing backspace in the input field. Please note that LSP does not replace the default key binding CtrlR for the built-in command.

Goto Symbol in Project#

The "Goto Symbol in Project" command from LSP is similar, but can access the symbols from all files in the project. The results are updated dynamically while typing in the input field.

Goto Diagnostic#

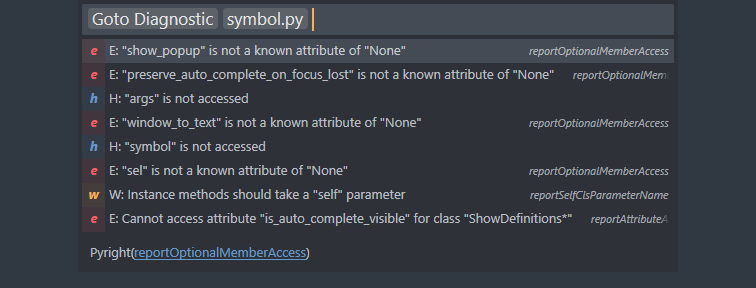

The "Goto Diagnostic" command provides an overview over all diagnostic in a file, and makes it easy to navigate to their locations. You can press backspace in the input field to switch between files with diagnostics.

Formatting#

Formatting can be triggered from the command palette, and it can be configured to run automatically on save or on paste. Many language servers either provide detailed formatting options in the server configuration, or apply formatting rules from a configuration file from the project folder.

Call Hierarchy#

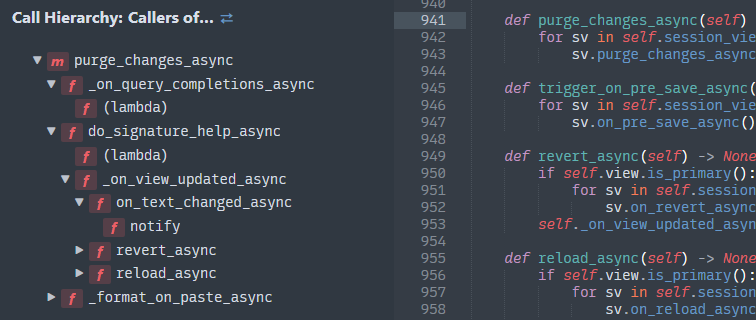

Call hierarchy presents a tree-based view of all callers of a function and their respective callers. LSP shows the call hierarchy in a side-by-side view, which opens the location when you click on an item in the tree. This makes it easy to navigate through each code path up the call chain and can be a useful tool for refactoring operations. Call hierarchy can also be toggled to show a structured view of all outgoing calls instead. The "Show Call Hierarchy" command is available from the right-click context menu and from the command palette.

Type Hierarchy#

Type hierarchy is similar to call hierarchy, just for super and subtypes, or parent and child classes.

Rename Symbol#

When you want to rename an identifier in Sublime Text, you probably use CtrlD to select a few next occurences and do the rename with multiple cursors.

Because a language server (usually) has an abstract syntax tree view of the file, it may be able to rename an identifier semantically. This package exposes that functionality through the hover popup, the context menu, and the top menu bar.

Some language servers provide global rename functionality as well. This package will present a modal dialog to ask you to confirm to apply or preview the changes if they span more than one file.

Rename File#

Some language servers support updating imports when renaming a file.

Expand Selection#

Sublime Text has the built-in functionality to expand the current selection, with the default key binding CtrlShiftA. A language server may also have this capability and is in a better position to decide what a "smart" Expand Selection should do.

Server Commands#

Language servers can have custom commands to provide additional functionalities. Such server commands can be executed manually via the lsp_execute command from LSP, that you can bind to a key. See Execute server commands for details.
